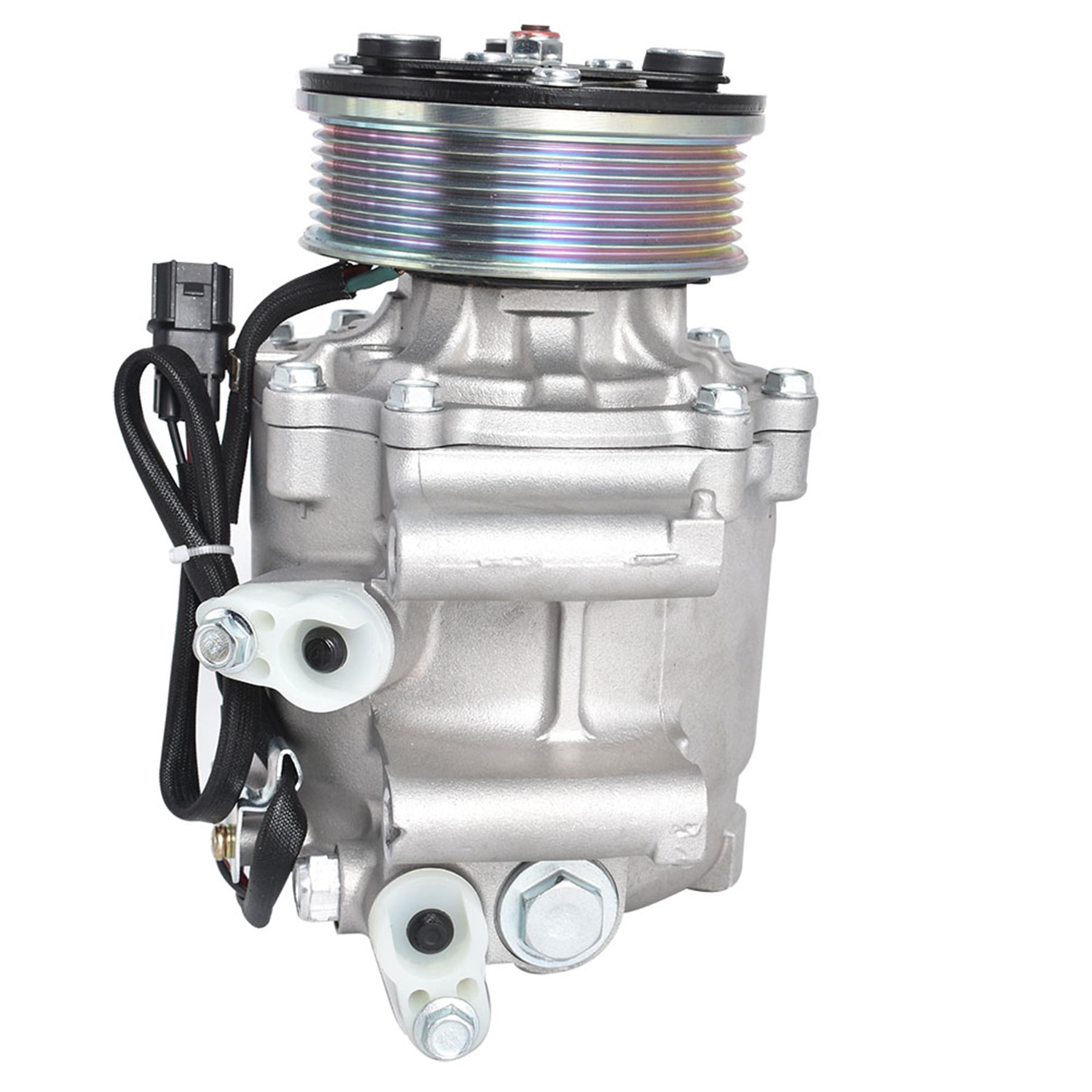

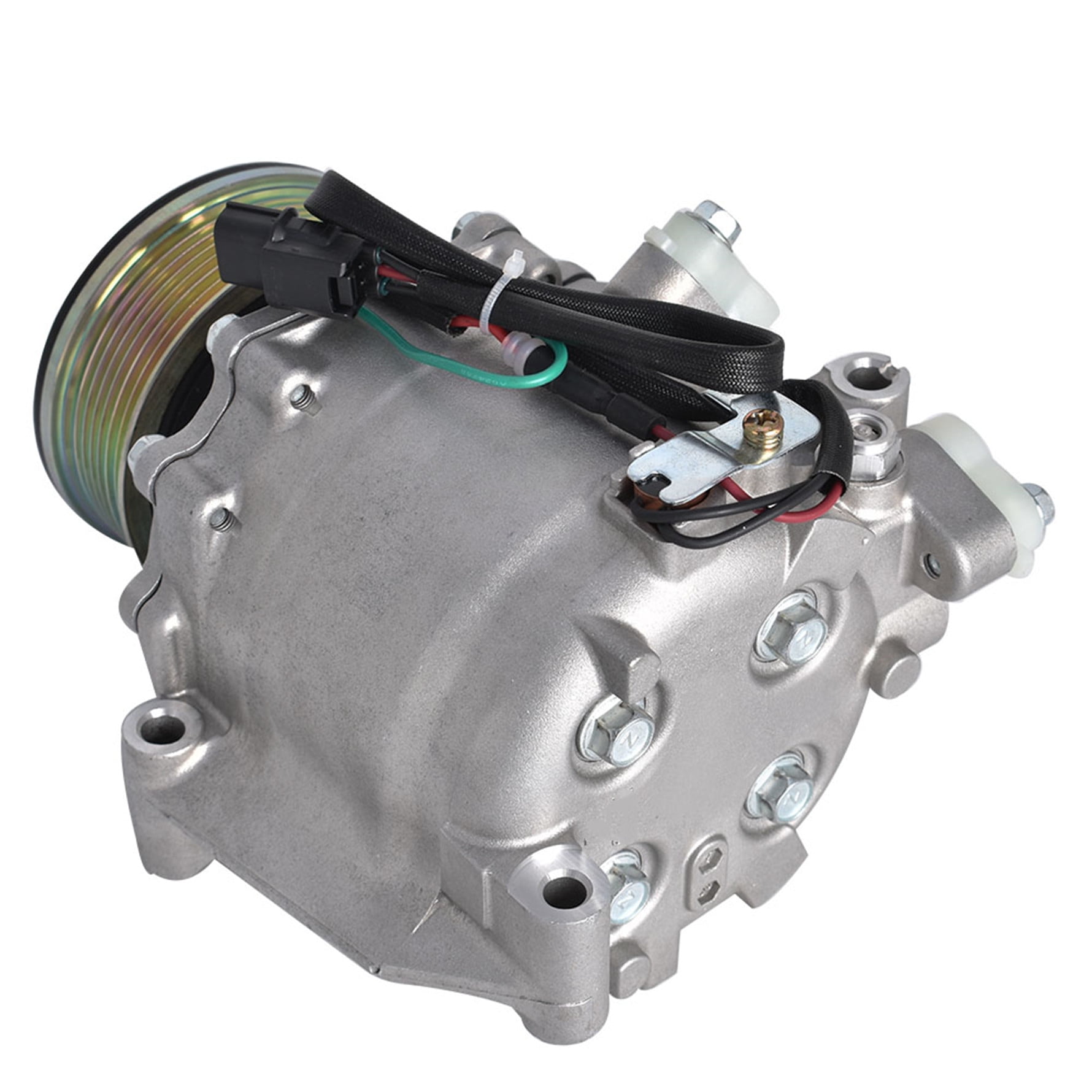

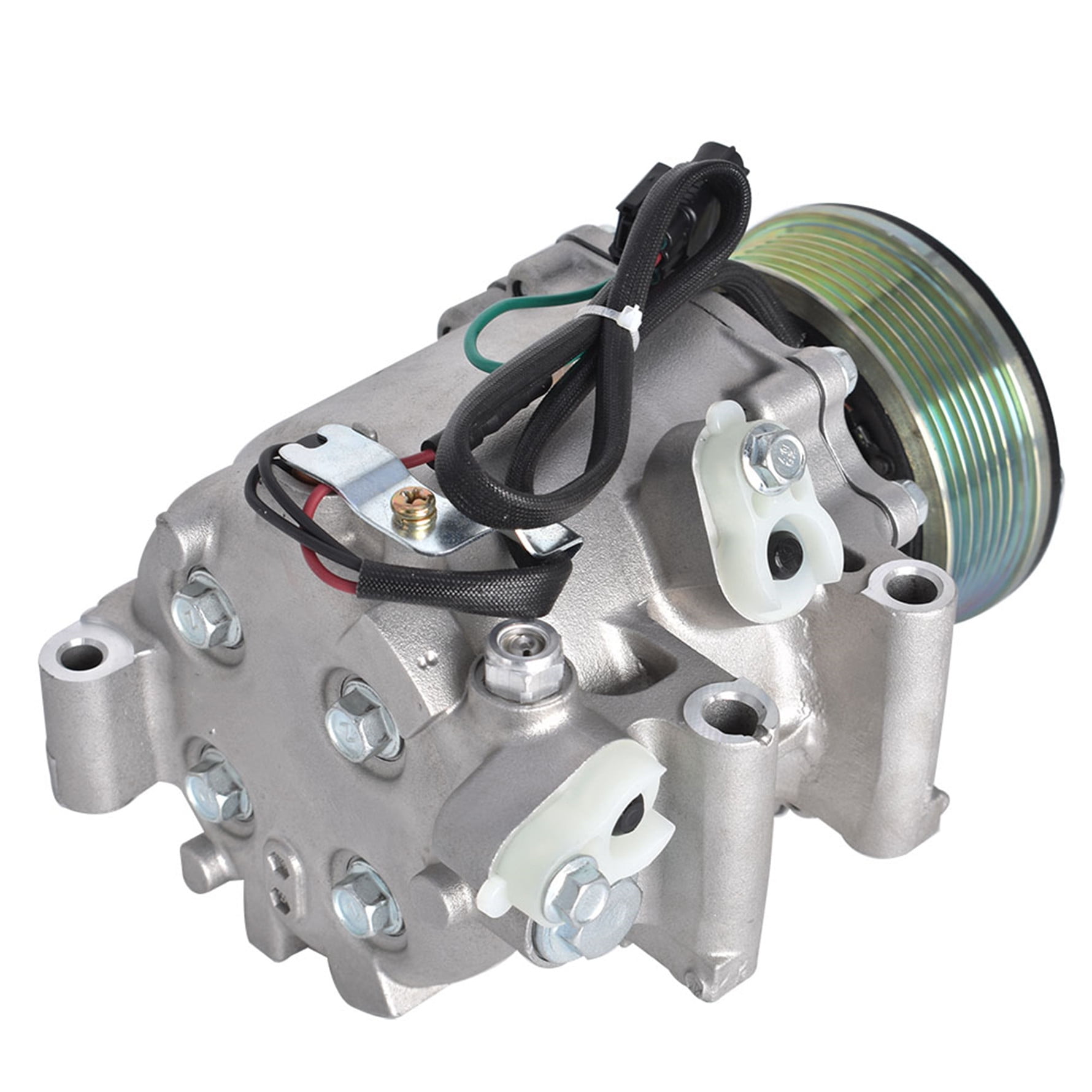

Genrics For 2006 2007 2008 2009-2011 Honda Civic 1.8L A/C AC Compressor and Clutch

<p>NOTE: Each AC air compressor comes with about 80ML of Oil. You dont need to add oil additionally.</p> <p>Fitment:</p> <p>For&nbsp;2006 - 2011 HONDA CIVIC&nbsp; 1.8L</p> <p></p> <p>Interchange Part Number:</p> <p>CO 4918AC,38810RNAA02,38810RRBA01,1102577,5512349,6512349,7512349,</p> <p>97555,98555,10361921,1102638,638880,38810-RNA-A02,38810-RRB-A01</p> <p>Installation Method</p> <p>Attention Please:</p> <p>Be sure to clean the air conditioning system before installation, otherwise it will cause compression broken.</p> <p>1. Remove compressor:</p> <p>Remove the A/C belt from the A/C compressor pulley. May involve loosening the belt tensioner (if equipped).</p> <p>2.receiver drier or accumulator, orifice tube or expansion valve.</p> <p>3.Disconnect the negative battery cable.</p> <p>4.Remove the bolt that secures refrigerant lines to the A/C compressor. Inspect A/C lines for any contamination such as metal or excessive dirt inside of them. If you find any</p> <p>contamination the system will need to be cleaned.Flush the condenser and evaporator using NON-OIL BASED A/C flush. On expansion valve systems. The valve must be removed before</p> <p>the&nbsp; evaporator can be flushed. Flushed condensers from outlet to inlet and evaporators from inlet to outlet. &nbsp;</p> <p>5.Drain all the oil from the new compressor ,if you compressor has a drain plug you will need to open it up and drain what oil is in there too.</p> <p>6.Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal</p> <p>parts are lubricated.</p> <p>7.Install new receiver drier or accumulator and new orifice tube or expansion valve.</p> <p>8.Evacuate the A/C system for a minimum of one hour.</p> <p>9.After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout</p> <p>the system.</p> <p>10.Turn on the A/C system with the engine running and check to see if cold air is now coming out of the air duct.</p> <p>11.If the A/C system is functioning ,you may find that your electric radiator fan and compressor clutch will be cycling off and on depending on the outside air temperature.</p> <p>To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table.</p> <p></p> <p>Note：</p> <p>This compressor comes pre-filled with the correct amount of oil. Thus, there is no need to add any additional oil to your system.</p> <p>Please add refrigerant to 70-80% without filling up.</p> <p>There may be noise if the refrigerant is added too much.</p>

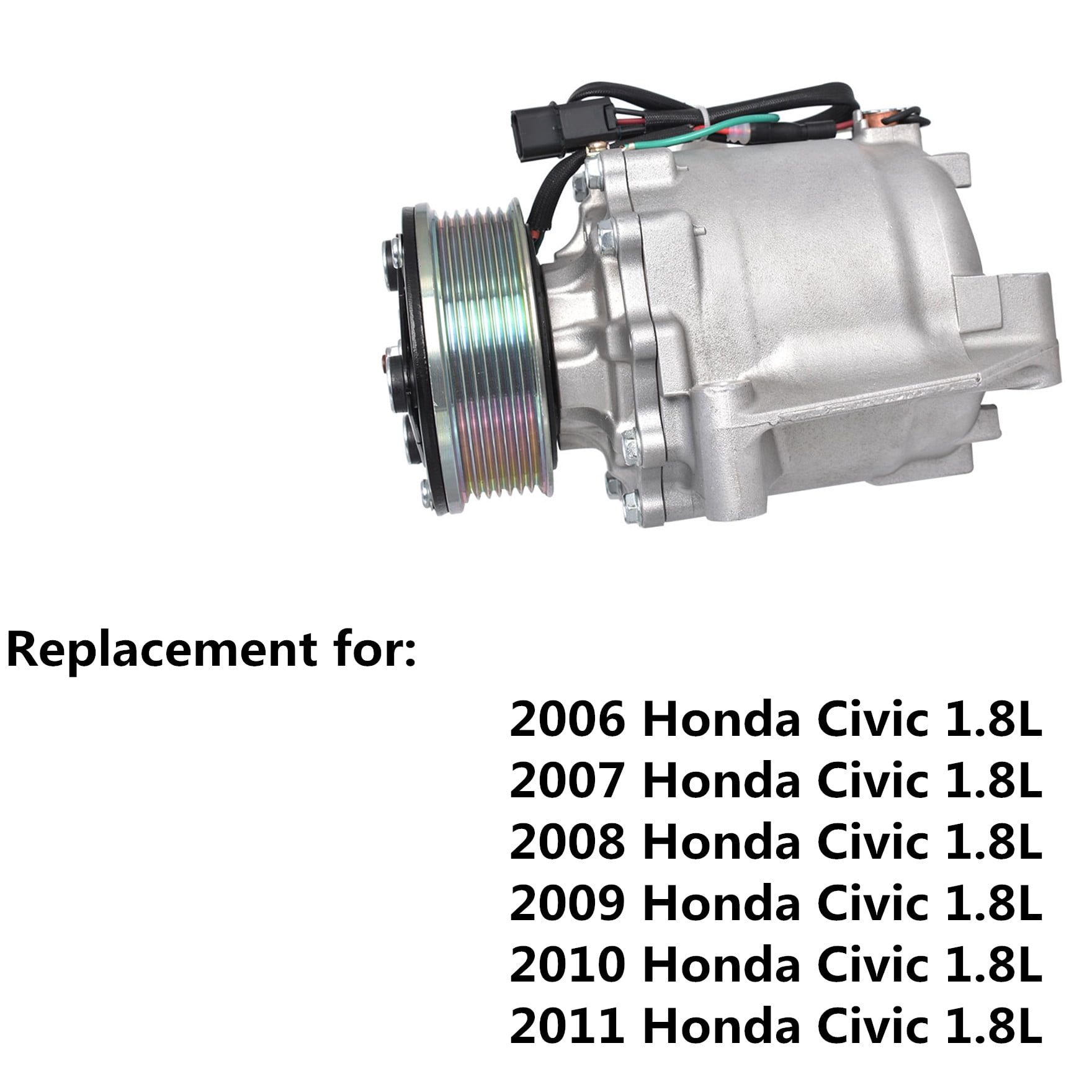

• Replacement for Honda Civic 1.8L 2006 2007 2008 2009 2010 2011 AC compressor
• Cross Reference Part Number of AC Compressor: 38810RNAA02 38810RRBA01 1102577 1102608 1102638 638880 97555 98555 5512349 6512349 7512349 2004918 2021929 2004918R 2021929R 140250C 140250NC 140250NEW 3410 4901 4918 4918U1 10361921 C1804 C1804R C2468R 0610225 TEM275739 275739 2004918AM TEM255528 AC compressor.
• Premium ISO/TS 16949 quality; Interior of AC Compressor contains Pre-Pag 46 Oil; Its highly recommended that check and add enough Oil to ac compressor before the replacement;
• The repalcment of ac compressor is kind of complicated, cleaning total circulatory system carefully and get rofessional replacement is highly recommended.
• Please confirm your model before purchase.
