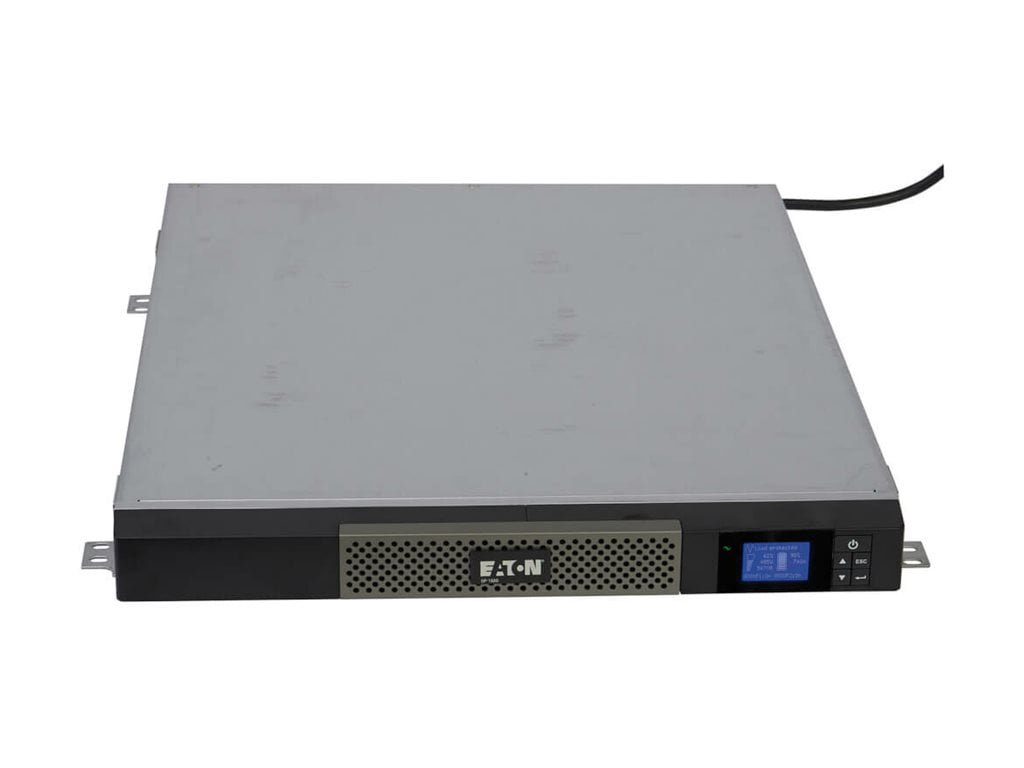

Eaton 5P UPS 550VA 420 Watt 120V True Sine Wave Rackmount UPS Network Card Optional (5P550R)
Product details
| Management number | 230522432 | Release Date | 2026/06/18 | List Price | US$199.60 | Model Number | 230522432 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Eaton 5P 420W Rackmount UPS has 5 x NEMA 5-15R receptacles and offers 550 VA of load capacity.<br><br>Eaton 5P 420W Rackmount UPS requires input voltage of 110 VAC and outputs voltage of 120 VAC, 132 VAC, 125 VAC. UPS provides efficiency up to 96% and offers rear terminal block connector for remote on/off.<br><br>• Input voltage: 89 - 151 VAC.<br>• Output voltage: 120 VAC default (100/120/125 V).<br>• Receptacles: 5 x NEMA 5-15R.<br>• Load capacity: 550 VA/420 W.<br>• Frequency: 50/60 Hz input, 50/60 Hz +/- 0.1 % output.<br>• Interface/ports: RJ-45, USB.<br>• Batteries: Sealed lead acid.<br>• Backup/run time: 3 minute full load, 8 minute half load.<br>• Form factor: Rack mountable.<br>• Dimensions: 1.7"(H) x 17.2"(W) x 14.3"(D).<br>• Software included: Intelligent power software suite.<br>• Includes 5P rackmount UPS, user manual CD, intelligent power software suite CD, quick start guide, USB cable, RS-232 serial cable, mounting ears.<br>• Certification and Standards: ENERGY STAR, RoHS, UL 1778, UL497A, cULus, CE, IEC 62040-2 C1-C2, EN 55024, CISPR22 Class B, FCC part 15 Class B.<br>• Weight: 19.7 lbs.<br><br>• Sold as 1 Each.
- 5P Rackmount UPS
- User Manual CD
- Intelligent Power Software Suite CD
- Quick Start Guide
- USB Cable
- RS-232 Serial Cable
- Mounting Ears
- UL 1778
- UL497A
- cULus
- CE
- IEC 62040-2 C1-C2
- EN 55024
- CISPR22 Class B
- FCC part 15 Class B
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Provides 20% more wattage compared to traditional UPS systems to protect devices
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
- SKU : 0743172043030
- Condition : NEW
- MPN : 5P550R
| Run time | 3 Minutes |
|---|---|
| Outlets | 5 |
| Brand | Eaton |
| Features | Line Interactive |
| Watts | 420 W |
| Form factor | Rackmount |
| Input voltage | 120 V |
| Accessories | <ul><li>5P Rackmount UPS</li><li>User Manual CD</li><li>Intelligent Power Software Suite CD</li><li>Quick Start Guide</li><li>USB Cable</li><li>RS-232 Serial Cable</li><li>Mounting Ears</li></ul> |
| Cord length | 6' |
| Dimensions | 23.00 x 17.70 x 6.50 Inches |
| Has written warranty | No |
| Color | Multi-color |
| Maximum amperage | 5 A |
| Model name | 5P550R |
| Weight | 23.70 Pounds |
| Count | 1 |
| Has nrtl listing certification | N |
